Looking for cheap water well drilling equipment? Our high-quality, budget-friendly options provide everything you need for efficient well drilling without breaking the bank. Whether you're a homeowner or small-scale contractor, we offer hand well digging equipment that is easy to operate and designed to help you drill water wells in your backyard or property with minimal effort.
Our backyard well drilling equipment is perfect for those seeking to drill wells in residential settings. Compact, portable, and affordable, this equipment makes it simple to access water for irrigation, drinking, or other uses. We understand the importance of affordable solutions, and our equipment ensures you get top performance at a fraction of the cost of larger, more complex rigs.
E80 E100 Working Video.
DH150 working video in Youtube:
DH200 working video in Youtube:
Mobile (Whasapp/Wechat): 008618638556116
Email: [email protected] [email protected]
Facebook:

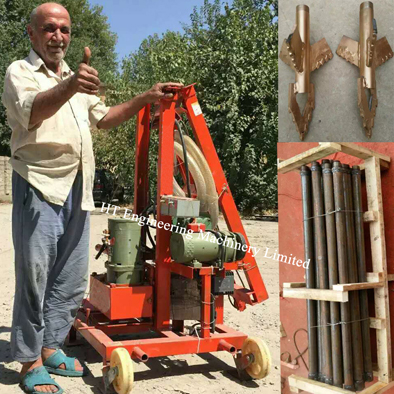

Water Well Drilling Rig Machine
| Model | E80 | E100 |
| Principle | Positive Cycle | Positive Cycle |
| Electricity | Single Phase | Three Phases |
| Drive Motor | 2kw (60V DC) | 3kw |
| Lift Mtor | 1.5kw (60V DC) | 1.5kw |
| High Pressure Submerged Pump | 2.2kw | 2.2kw |
| Max Drilling Depth | 80m | 100m |
| Max Drilling Diameter | 200mm | 400mm |
| Drilling Pipe | 42mm diameter, 1.5m/piece | 50mm diameter, 1.5m/piece |
| Drilling Pipe Equipped | 50m | 50m |
| Drilling Bit Equipped | 2 pieces | 2 pieces |
| One small bit (60mm,90mm) + one big bit (160-500mm) | ||
| Other Parts For One Complete Machine | High pressure submerged pump-1 unit | |
| High pressure water pipe-5m | ||
| Voltage transformer(change 220V AC to 60V DC) | ||
|
Only used for E80-P1 model electric water well drilling rigs. |
||
| Tools, seat, oil seal, English manual, etc | ||
