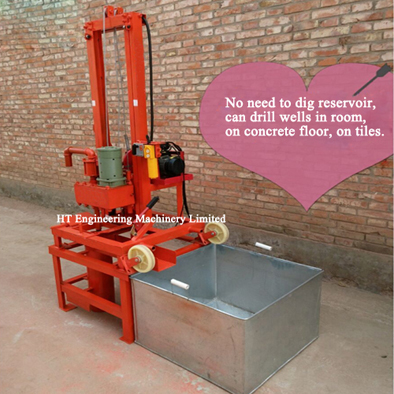

HT is a professional manufacturer for Diy water well drilling kit.
| Model | E80 | E100 |
| Principle | Positive Cycle | Positive Cycle |
| Electricity | Single Phase | Three Phases |
| Drive Motor | 2kw (60V DC) | 3kw |
| Lift Mtor | 1.5kw (60V DC) | 1.5kw |
| High Pressure Submerged Pump | 2.2kw | 2.2kw |
| Max Drilling Depth | 80m | 100m |
| Max Drilling Diameter | 200mm | 400mm |
| Drilling Pipe | 42mm diameter, 1.5m/piece | 50mm diameter, 1.5m/piece |
| Drilling Pipe Equipped | 50m | 50m |
| Drilling Bit Equipped | 2 pieces | 2 pieces |
| One small bit (60mm,90mm) + one big bit (160-500mm) | ||
| Other Parts For One Complete Machine | High pressure submerged pump-1 unit | |
| High pressure water pipe-5m | ||
| Voltage transformer(change 220V AC to 60V DC) | ||
| Only used for E80-P1 model | ||
| Tools, seat, oil seal, English manual, etc | ||
DH150 working video in Youtube:
DH200 working video in Youtube:
Mobile (Whasapp/Wechat): 008618638556116
Email: [email protected] [email protected]
Facebook:
Water Well Drilling Rig Machine
| Model | E80 | E100 |
| Principle | Positive Cycle | Positive Cycle |
| Electricity | Single Phase | Three Phases |
| Drive Motor | 2kw (60V DC) | 3kw |
| Lift Mtor | 1.5kw (60V DC) | 1.5kw |
| High Pressure Submerged Pump | 2.2kw | 2.2kw |
| Max Drilling Depth | 80m | 100m |
| Max Drilling Diameter | 200mm | 400mm |
| Drilling Pipe | 42mm diameter, 1.5m/piece | 50mm diameter, 1.5m/piece |
| Drilling Pipe Equipped | 50m | 50m |
| Drilling Bit Equipped | 2 pieces | 2 pieces |
| One small bit (60mm,90mm) + one big bit (160-500mm) | ||
| Other Parts For One Complete Machine | High pressure submerged pump-1 unit | |
| High pressure water pipe-5m | ||
| Voltage transformer(change 220V AC to 60V DC) | ||
|
Only used for E80-P1 model electric water well drilling rigs. |
||
| Tools, seat, oil seal, English manual, etc | ||
