HT is a professional manufacturer for mini hydraulic core exploration drill rigs for sale portable.
A soil investigation portable core drilling rig is an essential tool for geotechnical and environmental studies. This hydraulic core drilling rig allows for the extraction of core samples from various soil layers, providing valuable data on soil composition and structure.
Exploration core drilling equipment is essential for geological and mineral exploration, allowing for the extraction of core samples from deep within the earth.

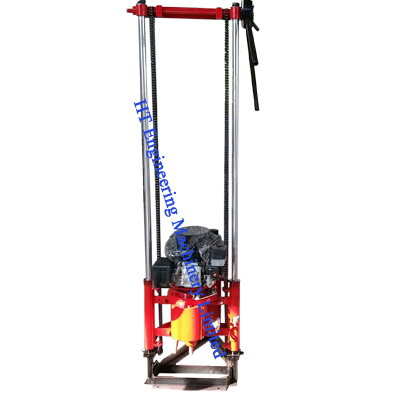

GC-20 mini exploration drill rigs for sale portable is a portable multi-purpose engineering rig, is suitable for industrial and civil buildings,
geophysical pilot holes in bridges, railways,highways, hydropower and other industries.
Our exploration drill rigs for sale also used in advanced drilling, grouting and punching, pre-embedded pilot holes, blasting holes, inspection holes, small household wells, etc.
Compact structure, small size, light weight, high and low gear shifting, easy to move.
If you are interested in our soil drilling rig, please contact by following ways:
Mobile (Whasapp/Wechat): 008618638556116
Email: htrigchina@gmail.com andy@htwaterwelldrillingrig.com
Facebook:
Water Well Drilling Rig Machine
| Drilling Diameter (mm) | 46/60/75 |
| Max Drilling Depth (m) | 46mm—20m, 60mm—10m, 75mm—8m |
| Drilling Pipe Diameter (mm) | 32 |
| Rotation Speed (r/min) | 360/720 |
| Torque (n.m) | 82 at 360r/min rotation speed |
| 41 at 720r/min rotation speed | |
| Power (kw) | 3Kw(electric motor) or 6.5Hp(gasoline engine) |
| Weight (kg) | 90 |
| Dimension (length x width x height)(mm) | 700x650x1950 |
| Working Way | Hydraulic, two hydraulic systems, hydraulic transmission |
| Power Source | diesel powered |
| Power | 25 Hp |
| Max Drilling Depth | 100 m |
| Max Drilling Diameter | 200 mm |
| Drilling Angle | 0°-90 ° |
| Rotation Speed | 0-300 r/min (continuously variable transmission) |
| Max Torque | 600Nm |
| Max Lifting Force | 3T |
| Machine Height | 2.6m |
| Weight | 500 kg |
| Dimension (length x width x height) | 1400 x 1250 x 2600 mm |
