Water well drilling machine
Zhengzhou MIC HT Industry Co.,Ltd (HT Engineering Machinery Limited)
Founded in 2004, located in Zhengzhou, capital city of Henan province,
is a research and development manufacturer focusing on
water well drilling rig, with good price for sale,

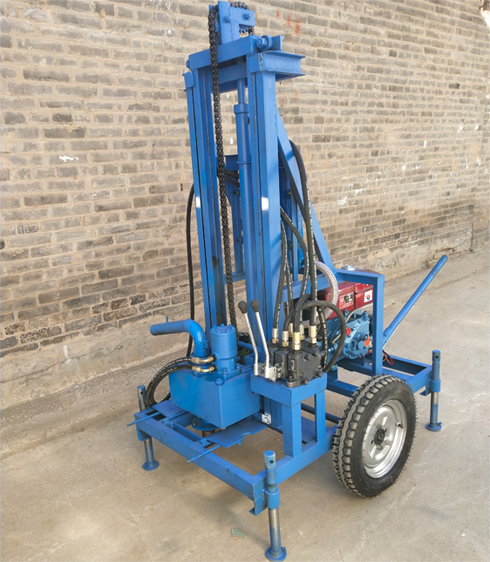

Here are the specifications and photos of our DH150 model for sale.
| Model | DH150 | |
| Principle | Positive Cycle | |
| Hydraulic Power | 22Hp-Diesel Engine | |
| Water Pump Power | Integrated pump | |
| Max Drilling Depth | 150m | |
| Max Drilling Diameter | 420mm | |
| Drilling Pipe | 51mm diameter,1.5m/piece | |

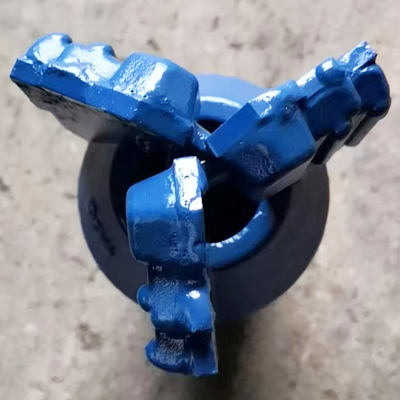

| Drilling Bit | Alloy Steel For Soil | 2 pieces |
| PDC For Rocks | Diameter should be within 250mm | |
|
Other Parts For One Complete Machine |
High pressure water pipe-10m | |
| Tools, seat, oilseal, English manual, Etc | ||

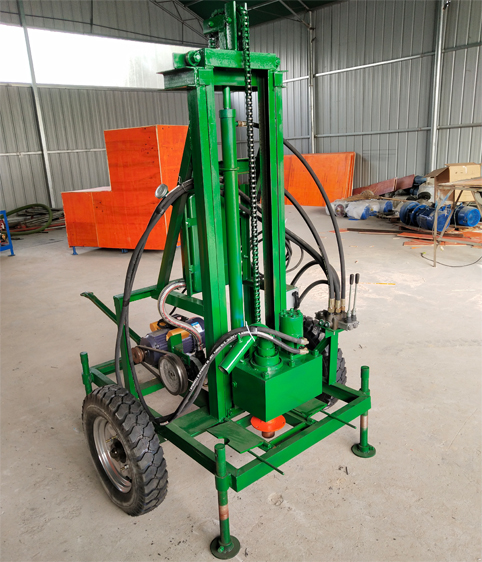

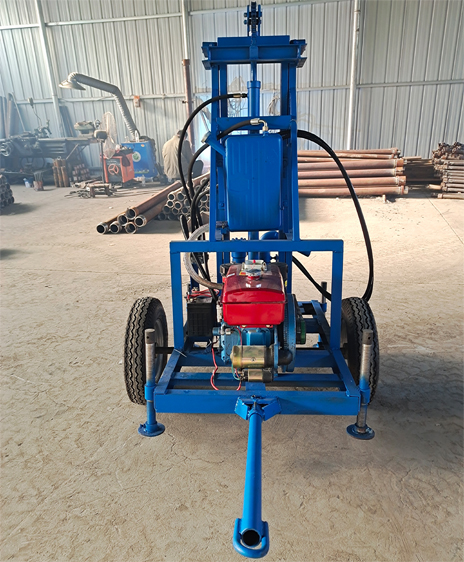

DH120 model water welll drilling rig ,the price is moderate,engine power is 8Hp, so it can not be designed with integrated water pump, it should use the separated pump Here are the specifications and photos of our DH120 model for sale.
| Model | DH120 | |
| Principle | Positive Cycle | |
| Hydraulic Power | 8Hp-Diesel Engine | |
| Water Pump Power | Centrifugal Pump--8Hp | |
| Max Drilling Depth | 120m | |
| Max Drilling Diameter | 400mm | |
| Drilling Pipe | 51mm diameter,1.5m/piece | |
| Drilling Bit | Alloy Steel For Soil | 2 pieces |
| PDC For Rocks | Diameter should be within 250mm | |
|
Other Parts For One Complete Machine |
High pressure water pipe-10m | |
| Tools, seat, oilseal, English manual, Etc | ||

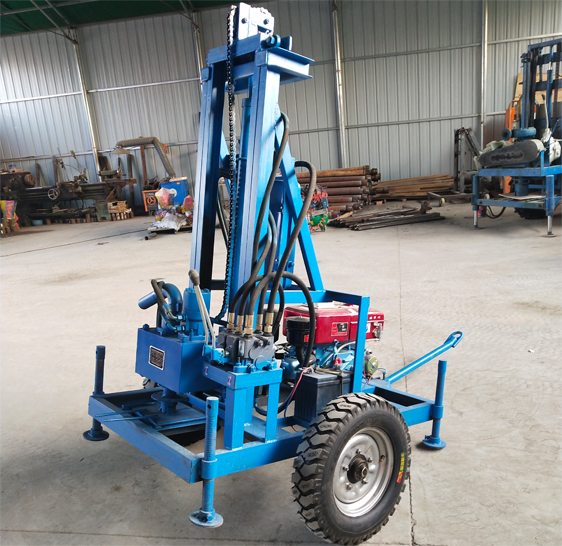

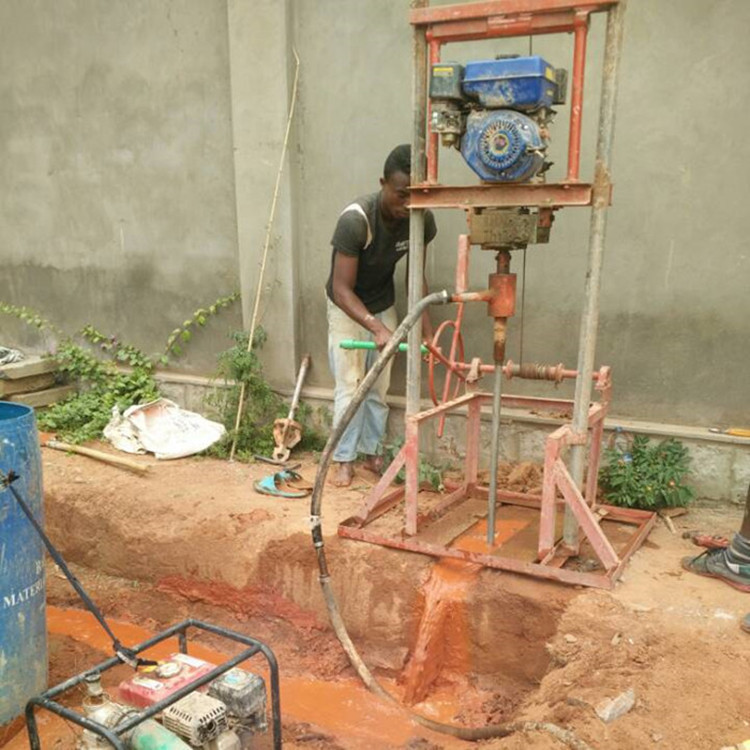

GSD-40 model water welll drilling machine with low price ,it uses gasoline engine of 7.5Hp,
so it can not be designed with integrated water pump either,we equip a 7.5Hp gasoline pump
to support it. This rig uses mechanical power instead of hydraulic power.
It is suitable for small investment and drill in shallow soft ground.
The advantage of this machine is lightweight and low price.
Here are the specifications and photos of our GSD-40 water drilling machine for sale.
| Model | GSD-40 | |
| Rig Power | 7.5Hp, gasoline type | |
| Water Pump Power | 7.5Hp, gasoline type | |
| Drilling Way | Power head rotation + manual pressurization | |
| Lift Way | Winch + manual lift | |
| Weight | 120 kg | |
| Dimension (length x width x height) | 1000 x 700 x 3100 mm | |

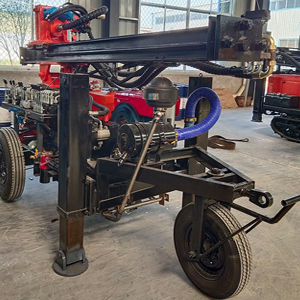

DH200 model water welll drilling machine with high price
,the engine power is 35Hp, with two hydraulic systems, one is for rotation and lifting, another is for adding pressure to
power head, very suitable for drilling rocks. Hydraulic cylinder stroke is 2m,
for a 2m length pipe, this rig only needs one time for adding hydraulic pressure to
press it down, it can be designed either with integrated water pump or with separated pump.
Here are the specifications and photos of our DH200 water drilling rig for sale.
| Model | DH200 | |
| Working Way | Full hydraulic, double hydraulic systems | |
| Max Drilling Depth | 210m | |
| Max Drilling Diameter | 500mm | |
| Max Torque | 900 Nm | |
| Max Lifting Force | 100 Kn | |
| Weight | 1400Kg | |
| Main Machine Power | 35 Hp | |
| Drilling Angle | 0°- 90 ° | |
| Rotation Speed | 0-150 r/min (Continuously Variable Transmission) | |
